Monitoring Squid Proxy traffic using ELK Stack (Elasticsearch/Logstash/Kibana)

This article will explain how to send Squid log access queries to elasticsearch, then we will use Kibana to build a cool & clean dashboard.


Run squid

     - You can follow our instructions to install and run squid from our                                    repository in Github

    Make sure you do the following:

         -      Your running os is Ubuntu

         -      Run Squid 5

         -      Add  self-signed certificate to client browser

  • Reconfigure squid :

       -  Run this command to add new line to configuration file:

       docker exec -d {container_name} sh -c 'echo "access_log tcp://<Logstash-server>:1025" >>            /etc/squid/squid.conf'

      Replace <Logstash-server> with the ip of Logstash host in this case it is

      172.17.0.1

   For example in squid5:

   docker exec -d squid5_proxy sh -c 'echo "access_log tcp://172.17.0.1:1025" >> /etc/squid/squid.conf"



    -  Reconfigure squid with new configuration with this command:

             docker exec -d {container_name} } sh -c 'squid -k reconfigure'

      for example in squid5:

        docker exec -d squid5_proxy sh -c 'squid -k reconfigure'

     The particularity is we forward access logs to a TCP server located at

      logstach on port 1025.


Setup ELK Stack

 Prerequisites

  • Ubuntu Server with 20.04 LTS

  • JDK

  • 2 CPU and 4 GB RAM

  • Open Ports 9200, 5601, 5044

  Install JDK on Ubuntu

    Run this command:

      sudo apt-get install openjdk-11-jdk wget apt-transport-https curl gnupg2 -y


Elasticsearch

  1-   Download elasticsearch

          -   open new terminal

         - run these commands:

      wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-8.4.2-linux-x86_64.tar.gz

                                tar -xzf elasticsearch-8.4.2-linux-x86_64.tar.gz

     cd elasticsearch-8.4.2/



2-   Configure elasticsearch

Inside config directory edit elasticsearch.yml file with this configuration:

     -    Go to Network section and uncommnet network.host and replace your   localhost
                     network.host: localhost
       -      Add the below line in Discovery section also
                  discovery.type: single-node
-    Modify this setting with false or add it if not exists
        # Enable security features

        xpack.security.enabled:false


3-   Run elasticsearch

-      Run this command to run elasticsearch inside elasticsearch directory

       ./bin/elasticsearch

Note: keep the current terminal open while elasticsearch are running

  -      Enter below command in new terminal to check elasticsearch is running by            sending HTTP request:

      curl -X GET "localhost:9200"
          output
            {
           "name" : "mahmoud-virtual-machine",
           "cluster_name" : "elasticsearch",
          "cluster_uuid" : "Ezvb_-4ITeGz-g_SW9sHqQ",
          "version" : {
          "number" : "8.4.1",
          "build_flavor" : "default",
          "build_type" : "tar",
          "build_hash" : "2bd229c8e56650b42e40992322a76e7914258f0c",
          "build_date" : "2022-08-26T12:11:43.232597118Z",
          "build_snapshot" : false,
          " lucene_version" : "9.3.0",
          "minimum_wire_compatibility_version" : "7.17.0",
          "minimum_index_compatibility_version" : "7.0.0"
          },
          "tagline" : "You Know, for Search"
           }


Kibana

1-   Download Kibana

             -   open new terminal

            - run these commands:

       curl -O https://artifacts.elastic.co/downloads/kibana/kibana-8.4.2-linux-x86_64.tar.gz
      tar -xzf kibana-8.4.2-linux-x86_64.tar.gz
      cd kibana-8.4.2/



2-   Configure Kkibana

Inside config directory edit kibana.yml file with this configuration

              Uncomment the below lines
                   server.port: 5601
                 server.host:"0.0.0.0"
                elasticsearch.hosts:["http://localhost:9200"]

3-   Run Kibana

-      Run this command to start kibana:

         ./bin/kibana

     Note: keep the current terminal open while kibana are running

 -      Enter this URL http://localhost:5601 in your web browser to open kibana              interface.


logstash

1-   Download logstash

             -   open new terminal

            - run these commands:

          curl -O https://artifacts.elastic.co/downloads/logstash/logstash-8.4.2-linux-x86_64.tar.gz
          tar -xzf logstash-8.4.2-linux-x86_64.tar.gz
          cd logstash-8.4.2/

2-    Configure Logstash With squid Logs

  Download this logstash.conf  =>

you can edit elasticsearch host and index name, but you can keep the default values as is.


3-   Run Logstash

·         Run this command to start  Logstash

       sudo bin/logstash -f <logstash.conf path>

 Replace <logstash.conf path> with the absolute path to logstash.conf


Note: keep the current terminal open while logstash are running

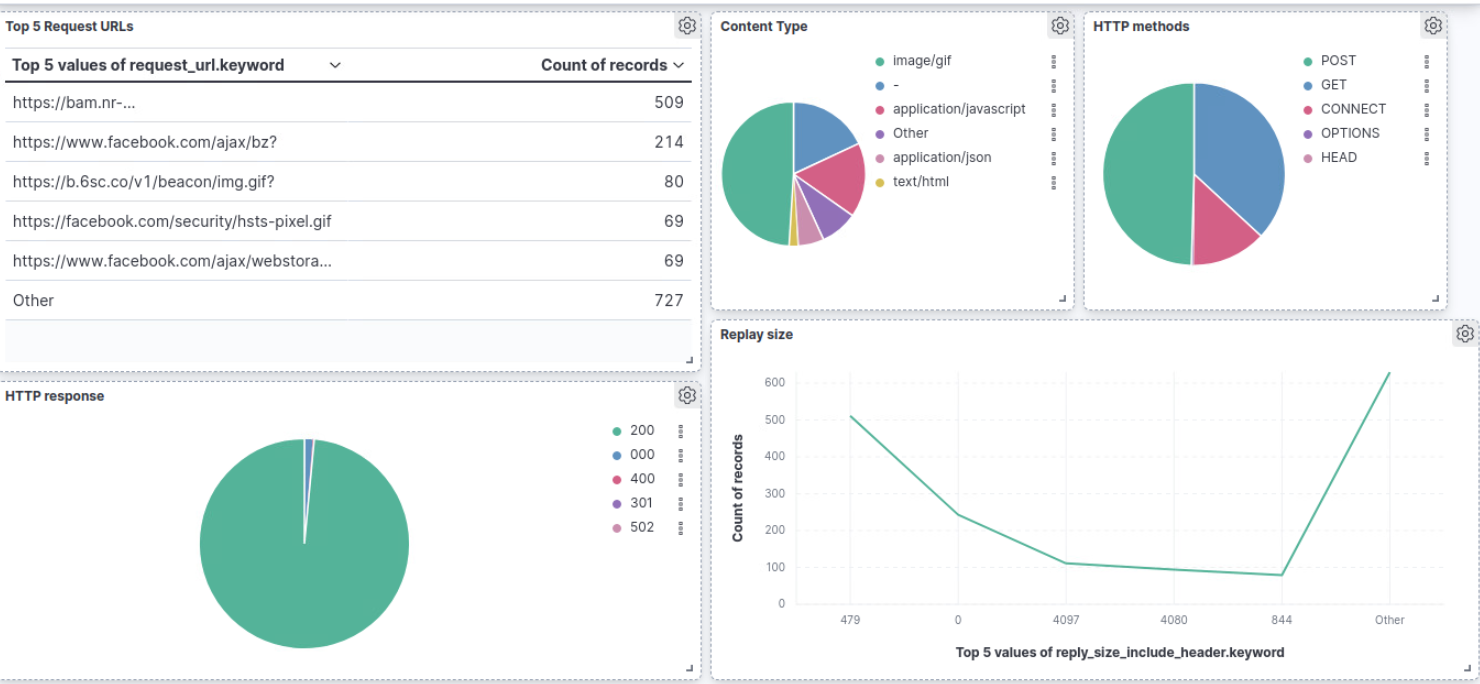

Create kibana dashboard

  •   Open kibana on your web browser    example: localhost:5601

  • create a data view of logs index

                    -  Open the main menu, then click Stack Management > Data Views.
                   -  Click Create data view.
                   -  Start typing in the name field - the name in logstash.conf file- , and  kibana looks                                    for the names of indices, data streams, and aliases that   match your input.

  •   In left bar under Analytics click to dashboard then create dashboard.

  •   Select squid index that you created then create any visualization     dashboard that you need

More information about create kibana dashboards: Create your first dashboard

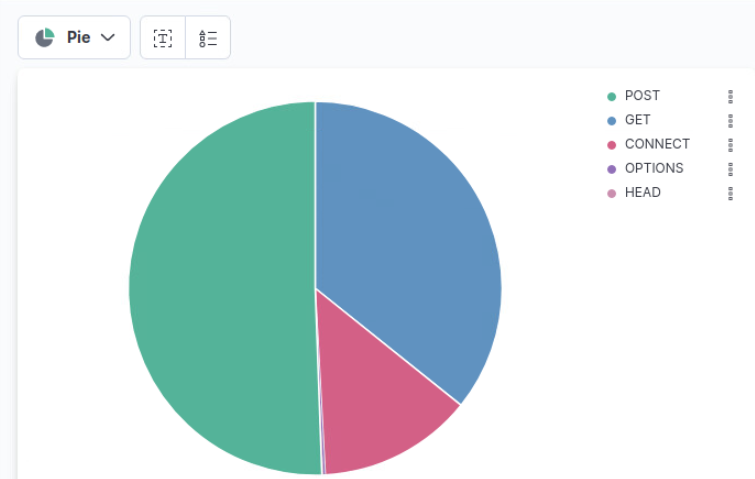

Example : create Pie chart of http methods

  •   On left bar under available field select http_method.keyword (drag it and     drop in the center)

  •   From Visualization type select Pie

    Result view



You can customize the dashboard as you need with many Visualization types like bar, table, line …etc
